Vacuum Evaporation Coating Consumable

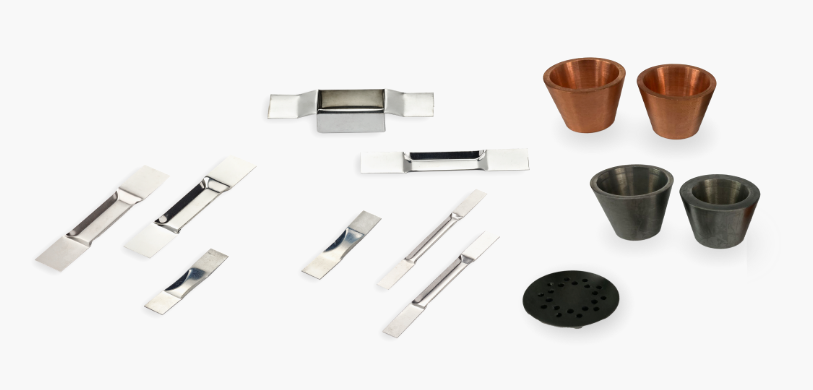

Boat
| Model No. |
Spec. |
| Tungsten |
Molybdenum |
W |
L |
ℓ |
d |
t |
| ST-208 |
SM-208 |
8 |
100 |
50 |
2.0 |
0.2 |
| ST-210 |
SM-210 |
10 |
100 |
50 |
2.0 |
0.2 |
| ST-215 |
SM-215 |
15 |
100 |
50 |
3.0 |
0.2 |
| ST-220 |
SM-220 |
20 |
100 |
50 |
3.5 |
0.2 |
| ST-308 |
SM-308 |
8 |
100 |
50 |
2.0 |
0.3 |
| ST-310 |
SM-310 |
10 |
100 |
50 |
2.2 |
0.3 |
| ST-315 |
SM-315 |
15 |
100 |
50 |
3.0 |
0.3 |
| ST-320 |
SM-320 |
20 |
100 |
50 |
4.0 |
0.3 |
| ST-510 |
SM-510 |
10 |
100 |
50 |
2.2 |
0.5 |
| ST-515 |
SM-515 |
15 |
100 |
50 |
3.5 |
0.5 |
| ST-520 |
SM-520 |
20 |
100 |
50 |
4.0 |
0.5 |

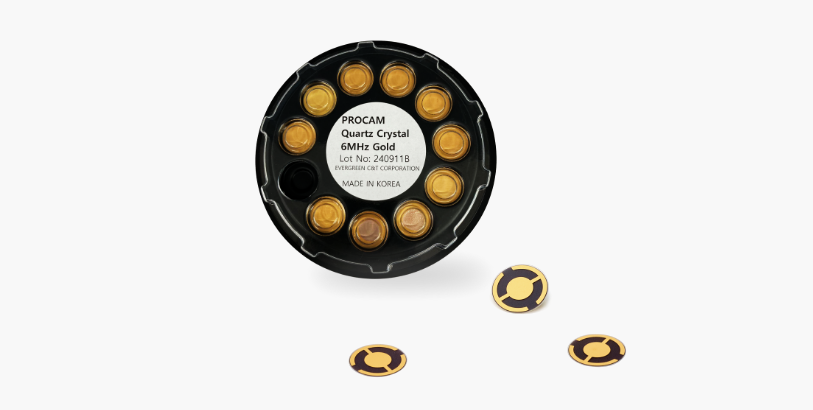

Crystal Quartz
| Making Frequency |
Adjustment Tolerance |
Diameter |
Electrode |
Packing |
| 6,000MHz |
±7kHz@25˚C |
13.97mm(0.55") |
Gold / Chrome |
10 pcs / pack |

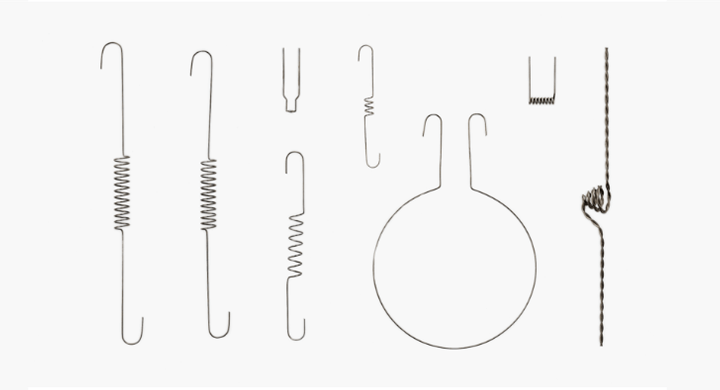

Filament
Ion Beam Filament
| Model No. |
Thickness(Ф) |
Rotation No.(T) |
Length(L) |
Outside Diameter(Ф) |
| I.B.F-1 |
0.5 |
12 |
120 |
7.5 |
| I.B.F-2 |
0.6 |
9.5 |
110 |
5.4 |
| I.B.F-3 |
0.6 |
12.5 |
110 |
7 |
| I.B.F-4 |
0.8 |
9.5 |
110 |
5.7 |
| I.B.F-5 |
0.8 |
12.5 |
110 |
7 |
Electron Beam Filament
| Model No. |
Thickness(Ф) |
Rotation No.(T) |
Length(L) |
| F-1 |
0.55(0.8) |
12.5 |
15 |
| F-2 |
0.6 |
9.2 |
25 |
| F-3 |
0.7 |
6.0 |
10 |
| F-4 |
0.76 |
7.5 |
20 |

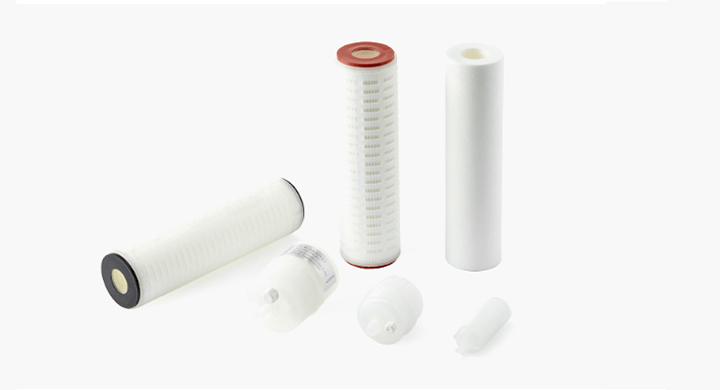

Filter
| Type |
Length(in) |
Pore Size(μm) |
Material |
| Pleated Filter |
10 |
0.1 |
PP
(Polypropylene) |
| 20 |
0.2 |
| 30 |
0.45 |
|
1 |
|
5 |
|
10 |
| Depth Filter |
5 |
1 |
PP
(Polypropylene) |
| 10 |
5 |
| 20 |
10 |
| 30 |
25 |
| Capsule Filter |
|
0.45 |
PP
(Polypropylene) |
|
5 |
High Performance
High Functional
Syper Hydrophobic
